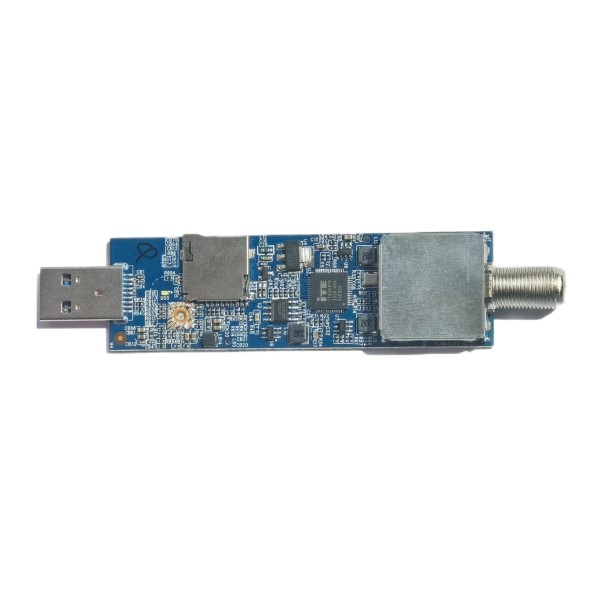

ATSC 3.0 Dongle overall solution based on Sony CXD6821GL, the internal model is DUA3-102T, which is an iteratively developed product based on DUA3-101T.
The product has compact hardware and is easy to carry, while the software is simple and easy to use. It supports touch, mouse, or just the basic buttons of the remote control (up, down, left, right, confirm, return) to access all functions of the product.
Connect the product to the USB2.0 and above interface of the Android platform and run the supporting App, which allows users to watch ATSC 3.0/1.0 TV shows in multiple scenarios such as home and outdoors using smart TVs, OTT set-top boxes, tablets, mobile phones or car machines.
Customers who adopt this solution can use all the designs of DUA3-101T, and the product can be quickly mass-produced and put on the market.
Specifications：
| Demodulator&Tuner | Single ATSC 3.0 tuner&demodulator, compatible with ATSC 1.0, powered by Sony CXD6821GL. |
| USB Bridge | Media stream and instructions communicate with USB 2.0, powered by ITE IT9303. |
| USB Interface | Power supply and data transport via USB 3.0 port, compatible with USB 2.0, powered by USB Hub IC Genesys Logic GL3510. |
| TF Card Reader | USB 3.0 TF card reader ,powered by Genesys Logic GL3224. |
| Software | Android App , compatible with ATSC 1.0/3.0, also compatible with various screen size, working with Android TV, OTT, smartphone, PAD via USB connection. |
