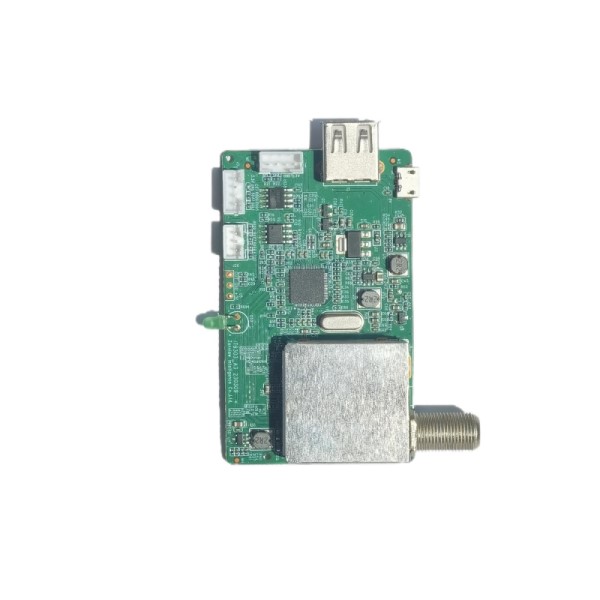

ATSC 3.0 module overall solution based on Sony CXD2878AER, internal model is DMUA3-103.
This module can be combined with an OTT motherboard through the USB 2.0 interface to become an Android digital TV set-top box with built-in ATSC 3.0/1.0 signal reception, which can pass NextgenTV and A3SA certification (the Android motherboard needs to support DRM Widevine L1).
The module hardware can be customized to match the customer's motherboard. The software is simple and easy to use. It supports touch, mouse, or just the basic buttons of the remote control (up, down, left, right, confirm, return) to access all functions of the product.
This solution is compatible with Dongle form and has standardized hardware design to meet the needs of customers for various forms of products. For specific Dongle solution specifications, please refer to DUA3-101T/DUA3-102T.
Specifications:
| Demodulator&Tuner | Single ATSC 3.0 demodulator, compatible with ATSC 1.0, powered by Sony CXD2878AER, Tuner powered by Rafael R856. |
| USB Bridge | Media stream and instructions communicate with USB 2.0, powered by ITE IT9303. |
| USB Interface | Multi sockets for module or dongle housing |
| Software | Android App , compatible with ATSC 1.0/3.0, also compatible with various screen size, working with Android TV, OTT, smartphone, PAD via USB connection. |
